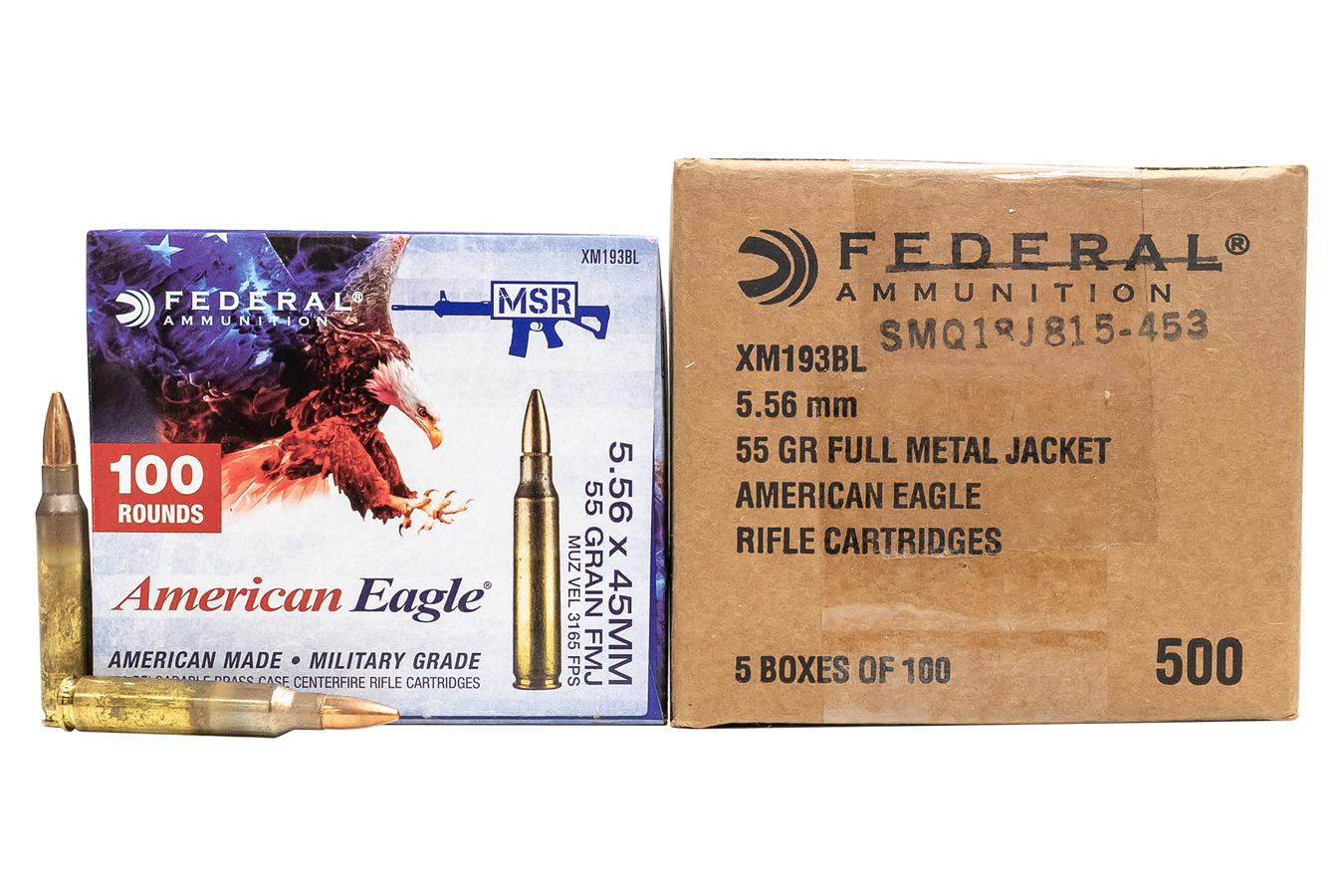

Federal XM193 5.56mm 55 gr FMJ Value Packs 500/Case

  • Item Number: XM193BL CS
  • /
  • View More Items by Federal
  • /
  • Condition: NEW
Temporarily Out of Stock
  • HORNADY 5.56 NATO 55 gr Hollow Point Match Frontier 20/Box

    Hornady 5.56 NATO 55 gr Hollow Point Match Frontier 20/Box
    $14.99 ($0.75 / round)

  • WINCHESTER AMMO 5.56mm 62 gr M855 FMJ Green Tip USA Valor Series 125/Box

    Winchester 5.56mm 62 gr M855 FMJ Green Tip USA Valor Series 125/Box
    $99.99 ($0.80 / round)

  • FEDERAL AMMUNITION 5.56mm NATO 55 gr FMJ Ball XM193 400 Rounds in Ammo Can

    Federal 5.56mm NATO 55 gr FMJ Ball XM193 400 Rounds in Ammo Can
    $319.99 ($0.80 / round)

  • WINCHESTER AMMO 5.56mm M193 55gr FMJ USA Valor Series 125/Box

    Winchester 5.56mm M193 55gr FMJ USA Valor Series 125/Box
    $99.99 ($0.80 / round)

  • HORNADY 5.56 NATO 75 gr BTHP Match Frontier 20/Box

    Hornady 5.56 NATO 75 gr BTHP Match Frontier 20/Box
    $21.99 ($1.10 / round)

  • WINCHESTER AMMO 5.56mm 77 gr BTHP Match 20/Box

    Winchester 5.56mm 77 gr BTHP Match 20/Box
    $39.99 ($2.00 / round)

Product Description

XM193 product is first run, first quality product manufactured at Lake City Army Ammunition Plant for Federal ATK and is made to Federal specifications.

All XM193 product is the same regardless of the sku or part number. (ie. XM193BL is the same as XM193BK, XM193F and etc…) The only difference is the way they’re packaged. This XM193 configuration comes as 100 rounds per box, and 500 rounds per case.

Ammo Specifications

  • CALIBER: 5.56 mm manufactured at the Lake City Army Ammunition Plant (LCAAP)
  • CASE: Brass (Copper Alloy No. 260)
  • BULLET: 55 gr. FMJ Boat-Tail
  • PRIMER: M41 Operating Range: (-40 degrees to +125 degrees F)
  • PRIMER SEALANT: Water resistant lacquer
  • CASE MOUTH SEALANT: Yes
  • CASE KNURL: No
  • HEADSTAMP: Each loaded cartridge shall be headstamped with the manufacturers symbol and year of manufacture
  • ACCURACY: 3-10round groups not to exceed 2.00 inch mean radius maximum average at 200 yards
  • INSTRUMENTAL VELOCITY: 3165 +/- 40 FPS (78 feet from muzzle) using a 5.56 test barrel 20 inches long
  • ENERGY: 1223 Ft-Lbs. at 78’
  • CHAMBER PRESSURE: Piezotronic maximum average per 10 rounds - 55000 PSI in 5.56 test barrel (case mouth location)
  • BULLET PULL: Minimum individual 35 lbs.
  • PROPELLANT DETECTION: 100% mechanical/electronic detection of propellant levels within the cartridge
  • VISUAL INSPECTION: 100% visual inspection of finished cartridges prior to packaging
  • WARNING: For use in standard 5.56 mm chambers. Do not use in .223 chambers.
  • QUANTITY: (5) 100 round value packs; 500 rounds total
