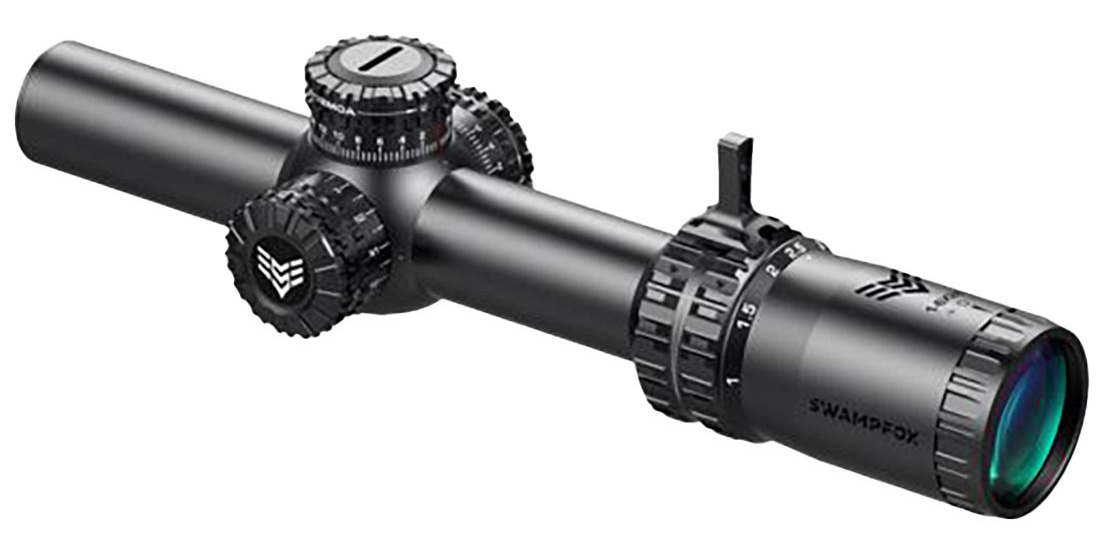

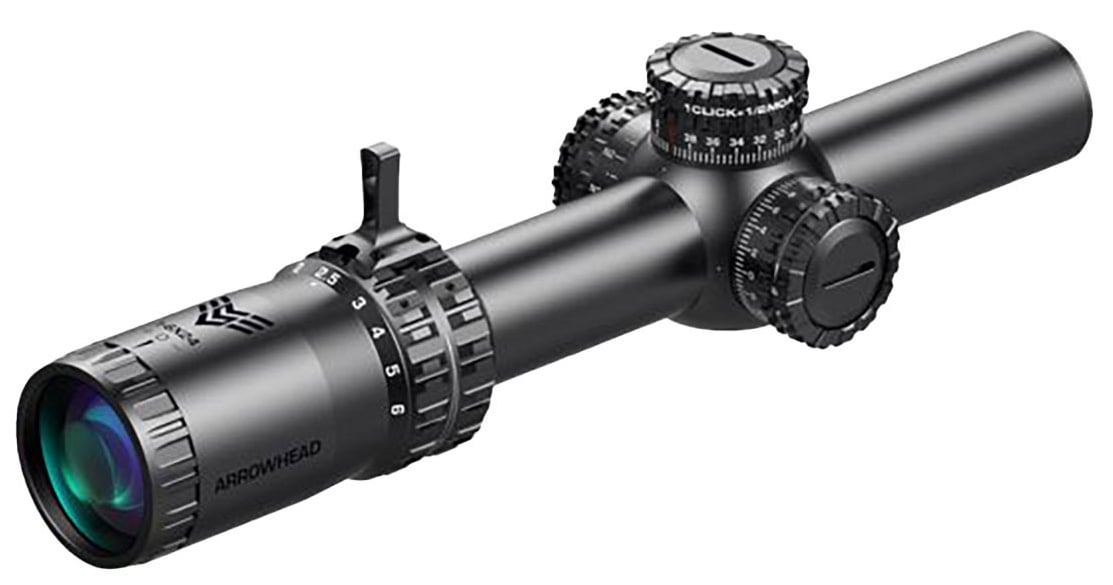

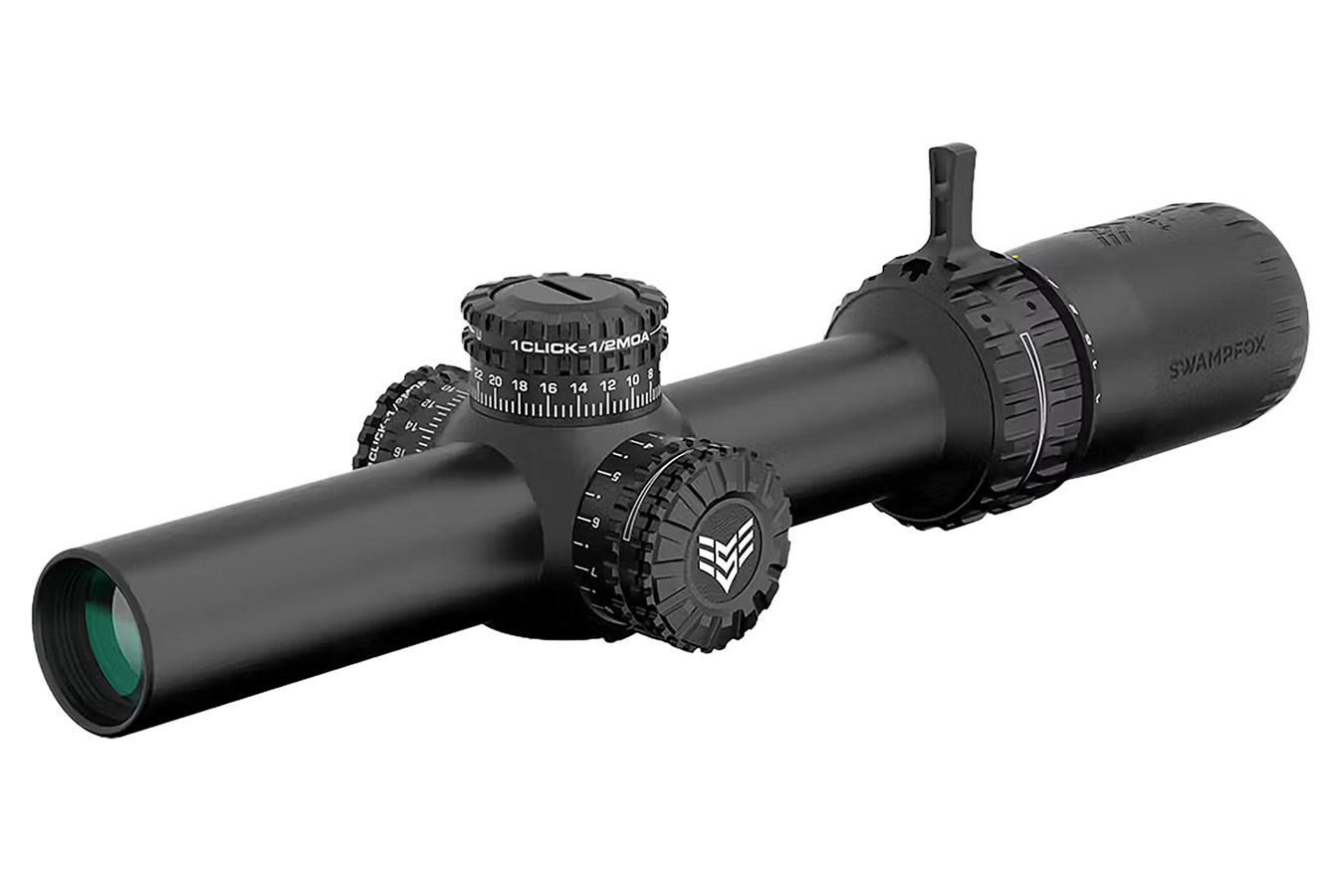

Swampfox Optics Arrowhead Black 1-8x24mm 30mm Tube Guerrilla Dot BDC Reticle

ARROWHEAD LPVO 1-8X24MM SFP ILLUMINATED RIFLE SCOPE

Arrowhead is Their flagship LPVO (low-power variable optic) series that exceeds all requirements for end-user applications. Every Arrowhead comes with push/pull locking turrets to ensure accuracy and prevent unintentional adjustments. Arrowhead also features a brighter sight picture, expansive field of view, and excellent resolution. Offered in three-second focal plane reticles: Guerrilla Dot BDC Long, Guerrilla Dot MOA Long, and Guerrilla Dot MIL, each with 12 red or green illumination settings. The Arrowhead is an excellent choice for both close quarters and long-distance engagements.

INCLUDED IN BOX:

• Scope
• Throw Lever
• Wrench for throw lever
• Flip Up Lens Caps
• Scope Cloth
• Battery
• Product Manual
• Reticle Manual

Product Specifications

• MAGNIFICATION: 1-6x
• TUBE DIAMETER: 30mm
• OBJECTIVE LENS DIAMETER: 24mm
• EXIT PUPIL (mm): 7.6mm-3.9mm (1X-6X)
• EYE RELIEF (in): 3.39-3.54” (1X-6X)
• FOV @ 100 YARDS (ft): 119.9-19.27 (1X-6X)
• CLICK VALUE: 1/2 MOA
• PARALLAX SETTING: 100 yds
• TRAVEL PER ROTATION: 60 Clicks/ 30 MOA
• MAX ELEVATION ADJUSTMENT: 100 MOA
• MAX WINDAGE ADJUSTMENT: 100 MOA
• LENS COATING: Fully Multi-Coated/ Anti-fog/Hydrophobic
• ILLUMINATION: 12 Position Illumination turret
• BATTERY: Side-mounted CR2032
• RETICLE: BDC or MOA Glass Etched Illuminated
• FOCAL PLANE: First Focal Plane
• FAST FOCUS DIOPTER: Yes, -2 to +2
• TURRET STYLE: Push/Pull Locking Turrets with Zero Reset
• LENGTH: 10.67”
• WEIGHT: 20.36 oz.
• WATERPROOF RATING: IPX7
• IMPACT RESISTANCE: 1,000 G Forces
