Swampfox Optics Blade 1x25mm Red IR BRC Reticle Prism Sight Black

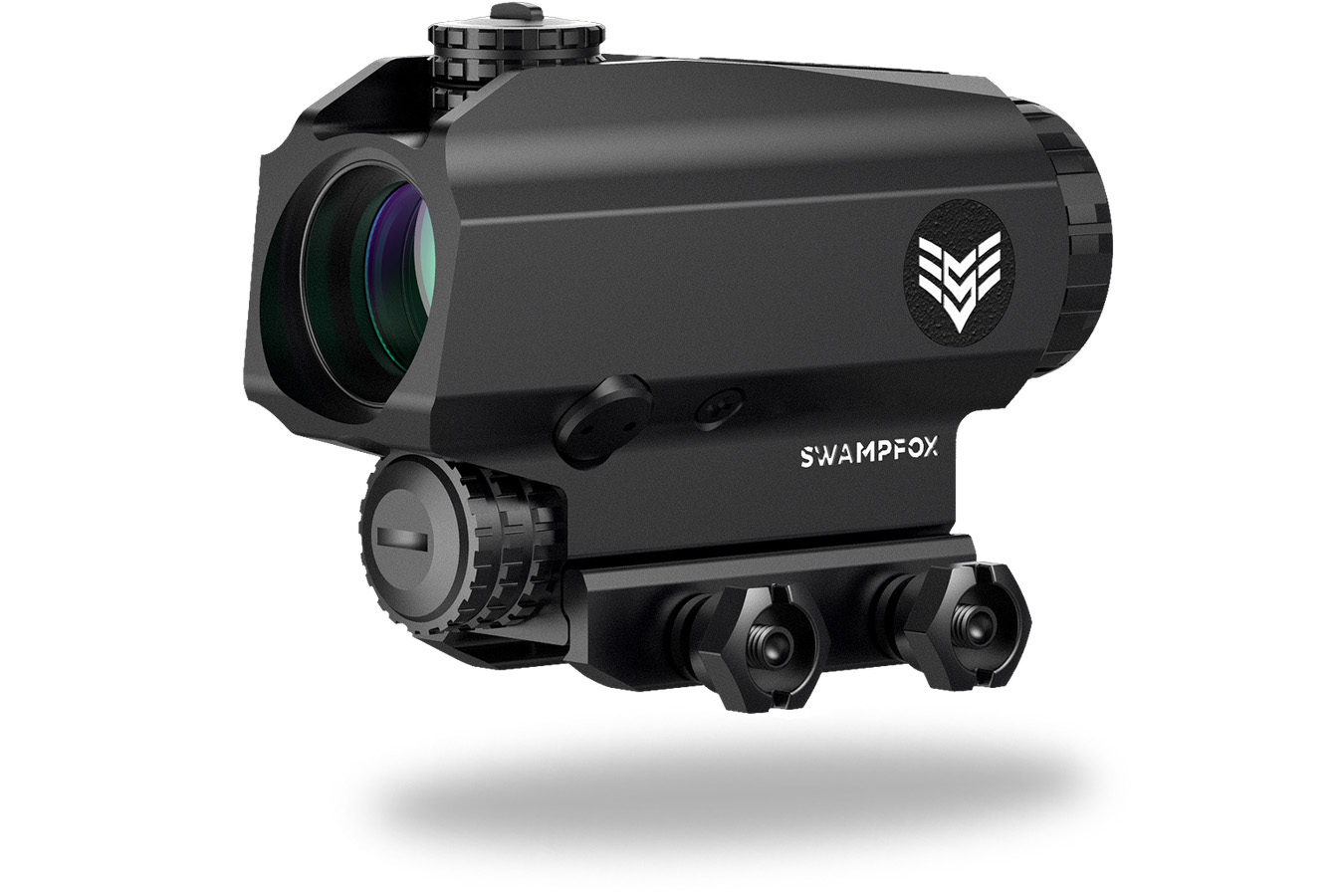

BLADE 1x25mm Prism Sight

Description

Blade by Swampfox is a 1x25mm prism optimized for CQB engagements. It features a Bullet Rise Compensating (BRC) etched reticle that compensates for optic height over bore, making it ideal for 5, 10, and 15 yards on a 5.56 AR-15 style platform. The Shake N’ Wake feature with auto on/off conserves battery life, while the etched reticle provides a clear sight picture—perfect for shooters with astigmatism. Blade is built for reliability, performance, and speed in any shooting environment.

Features

• Bullet Rise Compensation: Dedicated holds for 5, 10, and 15 yards to counter optic height over bore.
• Illumination & Shake N’ Wake: Red reticle with 12 brightness settings (2 NV compatible); auto on/off after 225 seconds of inactivity.
• Shoot Fast, Move Fast: Large 13.5mm exit pupil and adjustable rear diopter for fast target acquisition and a forgiving eye box.
• Etched Reticle Advantage: Reticle remains black without battery power, aiding shooters with astigmatism.
• Rugged Design: 6061-T6 aluminum chassis with integrated Picatinny mount for strength and easy setup.

Specifications

• Magnification: 1x
• Lens Diameter: 25mm
• Adjustment Click Value: 0.5 MOA
• Reticle Type: Red IR BRC
• Reticle Color: Red
• Brightness Settings: 12 (10 daylight, 2 NV)
• Electronic Sight Type: Red Dot / Prism Hybrid
• Eye Relief: 3.8"
• Exit Pupil: 13.5mm
• Parallax: Parallax Free @ 100 yards
• Battery Type: CR123A (Included)
• Battery Life: 3,000 Hours
• Shockproof Rating: 800 Gs
• Waterproof Rating: IPX7 / 1 Meter
• Material: 6061-T6 Aircraft Grade Aluminum
• Finish: Matte Black
• Lens Coatings: Fully Multi-Coated, Anti-Fog, Hydrophobic, Anti-Scratch
• Dimensions: 4.00" L x 2.44" W x 3.00" H
• Weight: 13.1 oz (0.819 lbs)
• Mount Type: Picatinny Rail (T25 Star, 35 in-lbs Torque)
• Windage/Elevation Range: +/- 45 MOA (90 MOA Total)
• Night Vision Compatible: Yes
• Quantity: 1
• Model Number: Blade
