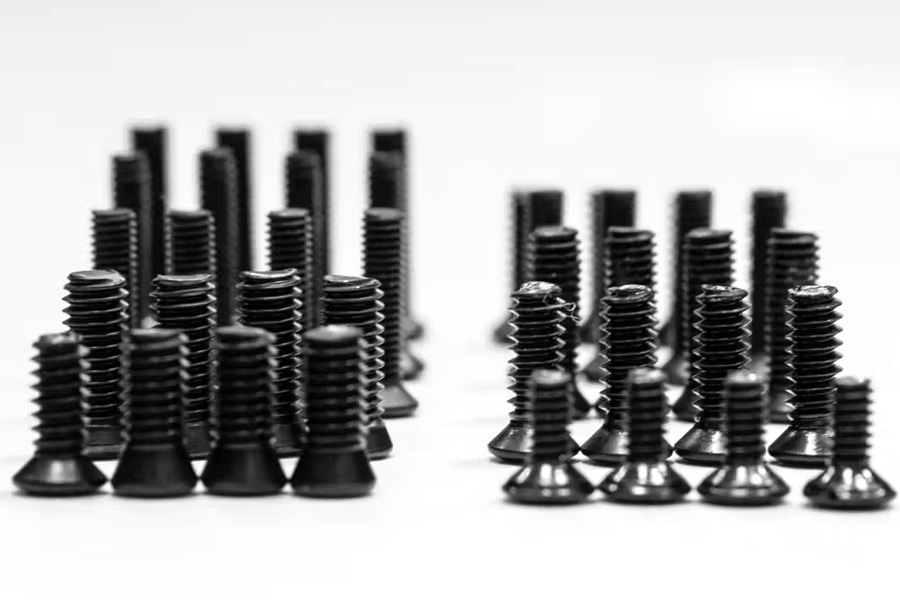

Swampfox Optics Ultimate Red Dot Mounting Screw Pack

Product Features

• Replacement screw pack for Swampfox red dot optics
• Includes multiple screw sizes for common optic and mount fitments
• T10 Torx screw heads
• Small head design; most heads measure 5.0 mm in diameter
• #6-32 screw heads measure 5.5 mm in diameter
• Recommended torque: no more than 15 inch-pounds
• Blue threadlocker recommended for screw threads

Fitment Guide

• Kingslayer / Liberty / Justice: M3.5 x 0.6, EL 11.0 mm
• Picatinny Mounts: #4-40 x 0.250, EL 6.35 mm
• Brownells Glock and Others: #6-32 x 0.374, EL 9.5 mm
• Sentinel-A / Sentinel-M: M4 x 0.7, EL 10.1 mm
• Some Canik Elite SC: M4 x 0.7, EL 8.6 mm
• Springfield Hellcat: M3 x 0.5, EL 12.0 mm
• Ironsides Shield / Glock MOS / Canik TP9 / Others: #6-32 x 0.39, EL 10.0 mm
• Some Canik Elite SC: M4 x 0.7, EL 14.0 mm
• Picatinny Mounts: M3 x 0.5, EL 12.0 mm

Extra Long DIY Screws

• #6-32 x 0.551, EL 14.0 mm
• #4-40 x 0.551, EL 14.0 mm
• #6-40 x 0.551, EL 14.0 mm
• M3 x 0.5, EL 14.0 mm
• M3.5 x 0.6, EL 14.0 mm
• M4 x 0.7, EL 14.0 mm
