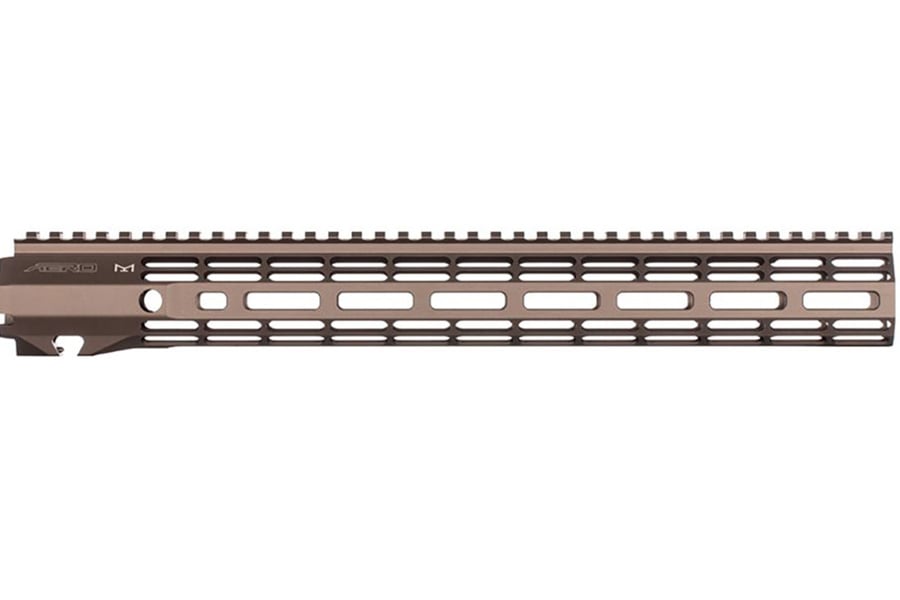

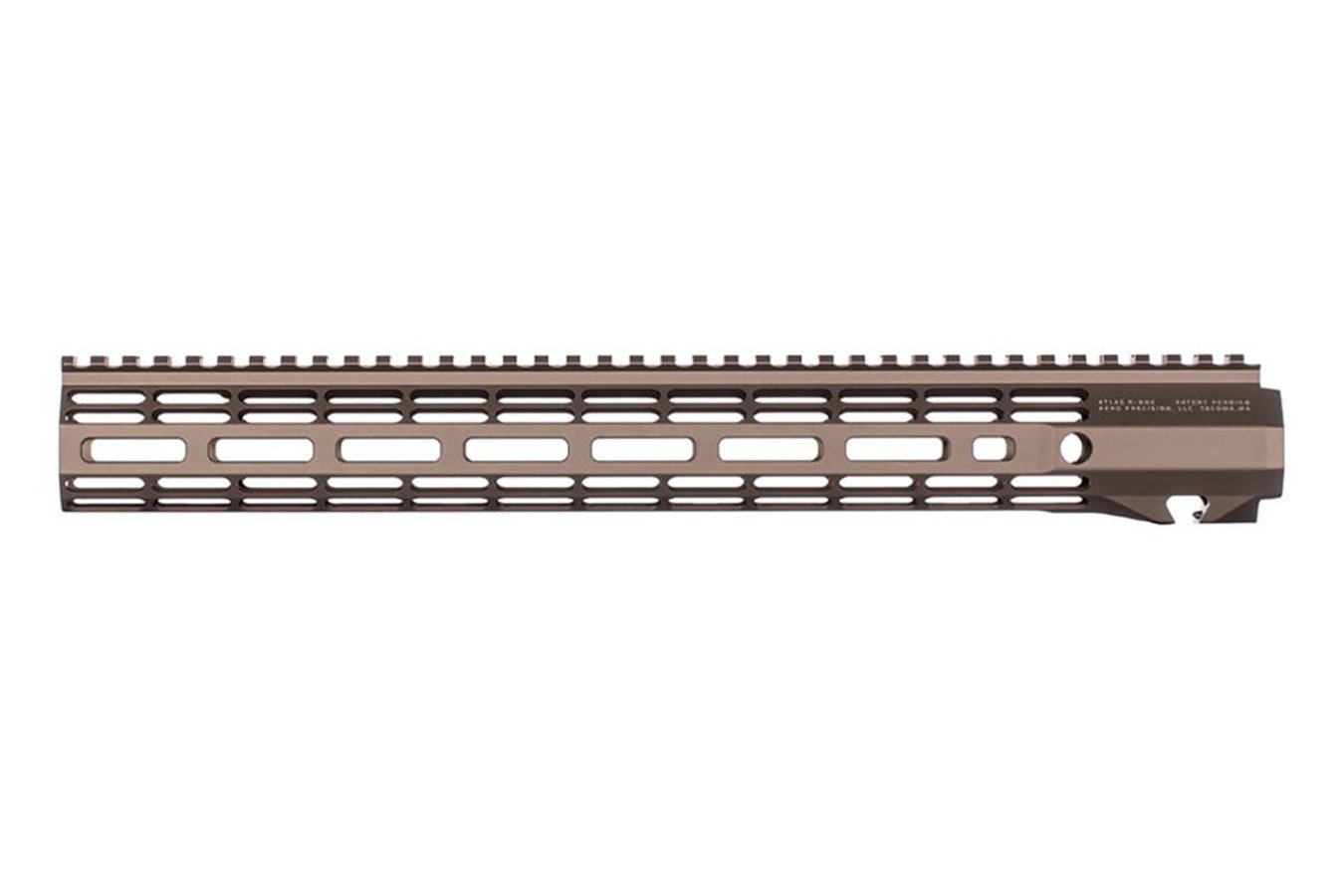

Aero Precision Inc AR 15In ATLAS R-ONE M-LOK Free Float Handguard

Description

The ATLAS R-ONE is the newest addition to the Aero Precision handguard lineup. Machined from 6061-T6 aluminum, the R-ONE handguards are engineered with size and weight in mind, providing an ideal handguard for lightweight builds. Aero Precision’s proprietary ATLAS attachment system is a durable, dependable mounting platform that maintains a slim profile while delivering the strength and stability customers expect.

ATLAS

The Aero Taper Lock Attachment System (ATLAS) is both functional and attractive. It features two mirrored tapered locking nuts that deliver evenly distributed clamping pressure across a custom-engineered barrel nut using a turnbuckle screw. A ratcheting detent further secures the design and provides positive registration during installation. The even clamping pressure helps avoid handguard distortion often seen with other systems.

All mounting hardware is included with the purchase of an ATLAS handguard. Lightweight by design.

Weights

• M-LOK handguard weights:
  • 7" — 5.22 oz
  • 9" — 6.03 oz
  • 12" — 8.00 oz
  • 15" — 9.07 oz
• Mounting hardware weight — 4.72 oz (same across all ATLAS handguard options)

Features

• Full top Picatinny rail for optional attachments
• Quick-disconnect sling sockets at the 3, 6 and 9 o’clock positions
• Compatible with low-profile gas blocks
• 1.3" inside diameter
• 1.5" outside diameter
• Compatible with mil-spec AR-15 upper receivers and barrels
• Designed to match M4E1 threaded upper receivers; may not fit some billet uppers due to indexing tabs

Restricted Part: Please check your state regulations for ownership of restricted parts — documentation may be required.
