Aero Precision Inc AR-15 12.7In ATLAS R-ONE M-LOK Free Float Handguard

Description

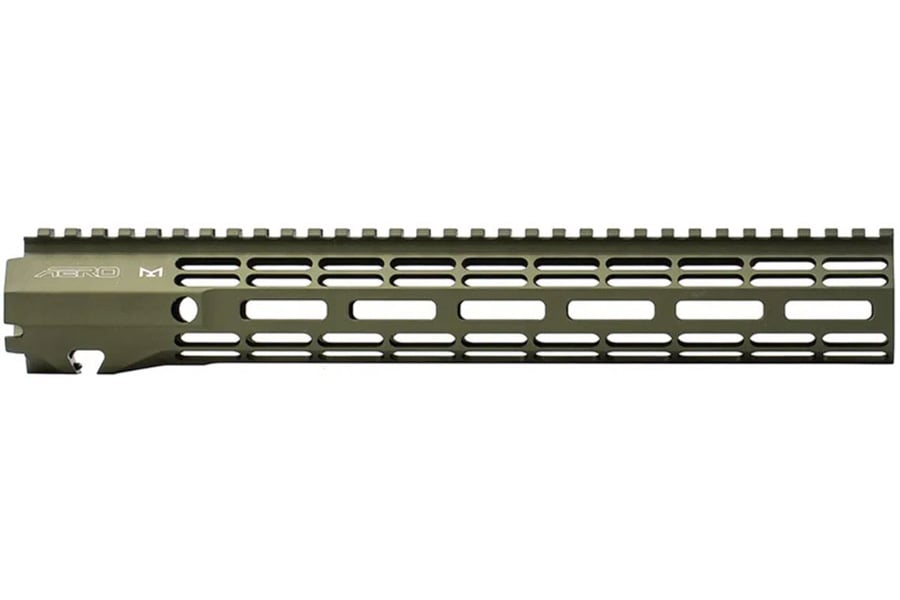

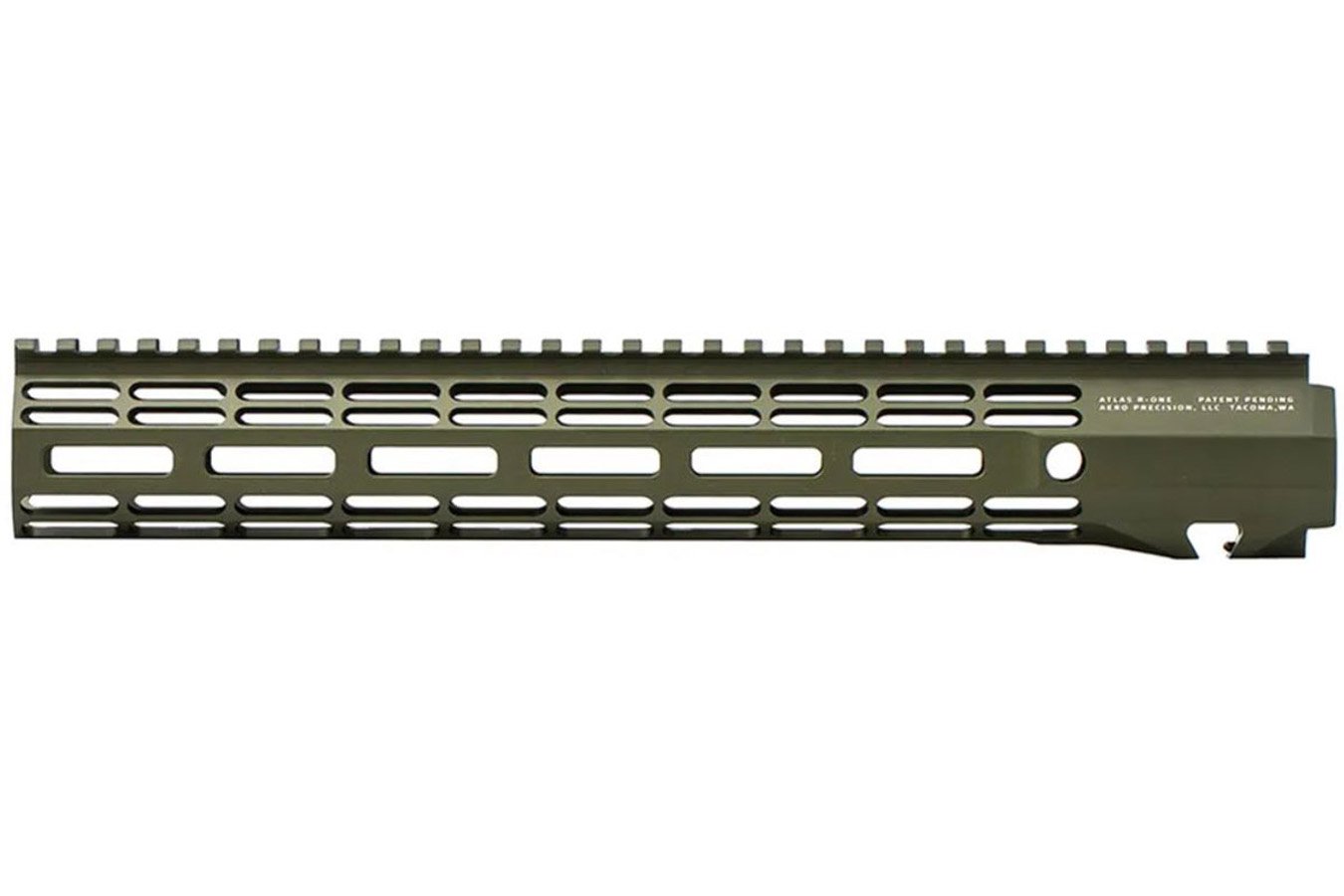

The ATLAS R-ONE is the newest addition to the Aero Precision handguard lineup. Machined from 6061-T6 aluminum, the R-ONE handguards are designed with size and weight in mind, making them ideal for lightweight builds. Aero Precision’s proprietary ATLAS attachment system provides a slim, durable mounting platform while delivering the strength and stability customers expect.

ATLAS

The Aero Taper Lock Attachment System (ATLAS) is functional and aesthetically pleasing. It features two mirrored tapered locking nuts that provide evenly distributed clamping pressure across a custom engineered barrel nut using a turnbuckle screw. A ratcheting detent further secures the design and provides positive registration during installation. The even clamping pressure helps avoid handguard distortion commonly seen with other systems. All mounting hardware is included with the purchase of an ATLAS handguard.

Weights

• M-LOK Handguard Weights: 7" — 5.22 oz / 9" — 6.03 oz / 12" — 8.00 oz / 15" — 9.07 oz
• Mounting Hardware Weight: 4.72 oz (same across all ATLAS handguard options)

Features

• Full top Picatinny rail for optional attachments
• Quick-disconnect sling sockets at the 3, 6 and 9 o’clock positions
• Compatible with low-profile gas blocks
• 1.3" inside diameter
• 1.5" outside diameter
• Compatible with mil-spec AR-15 upper receivers and barrels
• Designed to match M4E1 threaded upper receivers; may not fit some billet uppers due to indexing tabs

Restricted Part: Please check your state regulations for ownership of restricted parts — documentation may be required.
